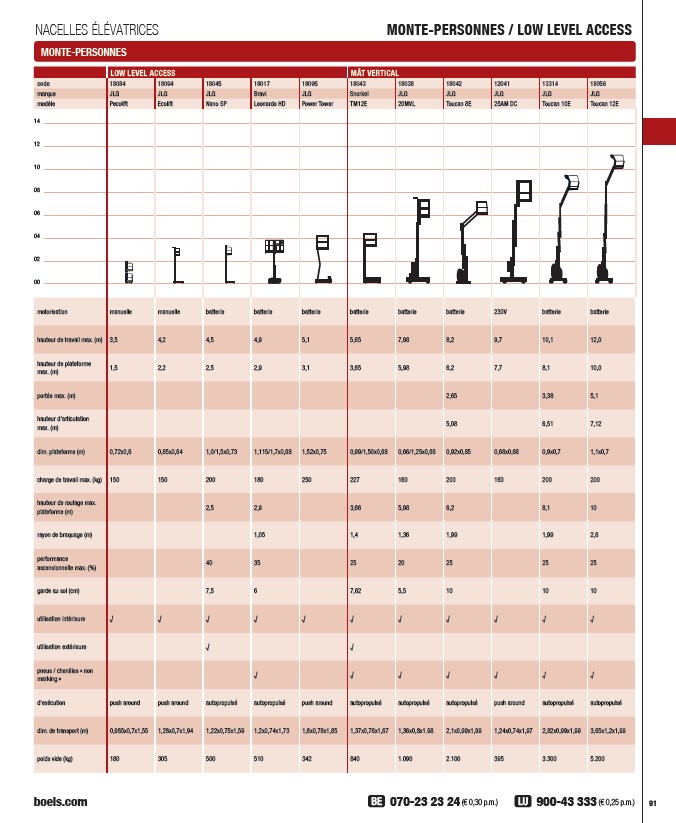

NACELLES ÉLÉVATRICES MONTE-PERSONNES / LOW LEVEL ACCESS
MONTE-PERSONNES
LOW LEVEL ACCESS MÂT VERTICAL
code 18084 18094 18045 18017 18095 18043 18038 18042 12041 13314 18056
marque JLG JLG JLG Bravi JLG Snorkel JLG JLG JLG JLG JLG
modèle Pecolift Ecolift Nano SP Leonardo HD Power Tower TM12E 20MVL Toucan 8E 25AM DC Toucan 10E Toucan 12E
14
12
10
08
06
04
02
00
motorisation manuelle manuelle batterie batterie batterie batterie batterie batterie 230V batterie batterie
hauteur de travail max. (m) 3,5 4,2 4,5 4,9 5,1 5,65 7,98 8,2 9,7 10,1 12,0
hauteur de plateforme
max. (m)
1,5 2,2 2,5 2,9 3,1 3,65 5,98 6,2 7,7 8,1 10,0
portée max. (m) 2,65 3,38 5,1
hauteur d'articulation
max. (m)
5,08 6,51 7,12
dim. plateforme (m) 0,72x0,6 0,85x0,64 1,0/1,5x0,73 1,115/1,7x0,68 1,52x0,75 0,99/1,50x0,68 0,66/1,25x0,66 0,92x0,85 0,66x0,66 0,9x0,7 1,1x0,7
charge de travail max. (kg) 150 150 200 180 250 227 160 200 160 200 200
hauteur de roulage max.
plateforme (m)
2,5 2,9 3,66 5,98 6,2 8,1 10
rayon de braquage (m) 1,05 1,4 1,36 1,99 1,99 2,6
performance
ascensionnelle max. (%)
40 35 25 20 25 25 25
garde au sol (cm) 7,5 6 7,62 5,5 10 10 10
utilisation intérieure √ √ √ √ √ √ √ √ √ √ √
utilisation extérieure √ √
pneus / chenilles « non
marking »
√ √ √ √ √ √ √
d'exécution push around push around autopropulsé autopropulsé push around autopropulsé autopropulsé autopropulsé push around autopropulsé autopropulsé
dim. de transport (m) 0,985x0,7x1,55 1,28x0,7x1,94 1,22x0,75x1,59 1,2x0,74x1,73 1,6x0,78x1,85 1,37x0,76x1,67 1,36x0,8x1.98 2,1x0,99x1,99 1,24x0,74x1,97 2,82x0,99x1,99 3,65x1,2x1,99
poids vide (kg) 180 305 500 510 342 840 1.090 2.100 395 3.300 5.200
boels.com BE 070-23 23 24 (€ 0,30 p.m.) LU 900-43 333 (€ 0,25 p.m.)
91
